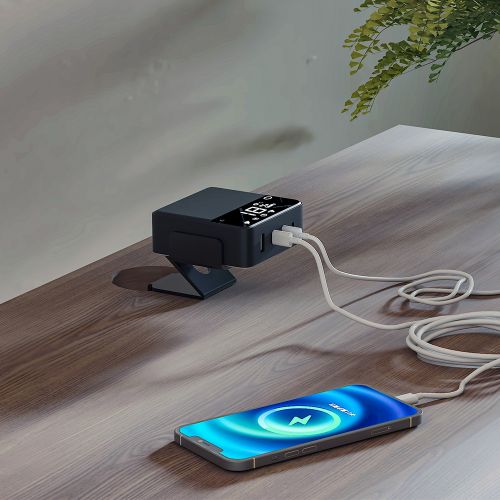

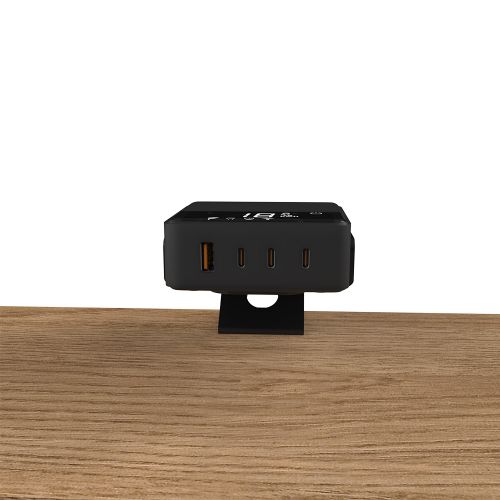

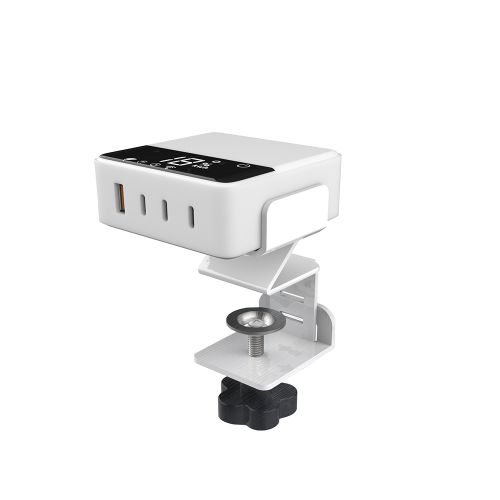

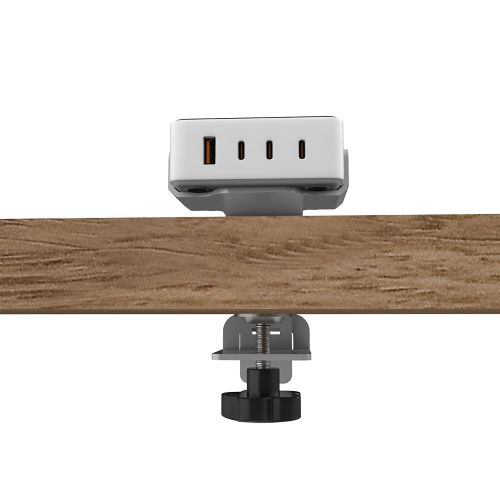

GaN PD 100W Multi-Functional Charging Module, It can support power supply for up to 4 devices simultaneously.
Product Description
Input: 100-240V, 50/60Hz, 1.5A Max
Single-Port Output (Max Power)
USB-C1/C2/3 (High Power):
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max)
USB-A1 (Standard Ports):
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W Max) SCP: 10V/2.25A
Multi-Port Output Modes (Dynamic Power Sharing)
USB-C1+C2 Output:65W+30W
USB-C1/C2+C3/A1 Output:65W+30W
USB-C1+C2+C3 Output: 45W+30W+20W
USB-C1+C2+A1 Output: 45W+30W+18W
USB-C1+A1+A1 Output: 7.5W+7.5W+5W
USB-C1+C2+C3+A1 Output: 45W+30w+7.5W+7.5W
Physical Specifications
Dimensions：75mm × 75mm × 30mm (L × W × H)
Weight: Approximately 239g
Certifications: CB、CE、UKCA
