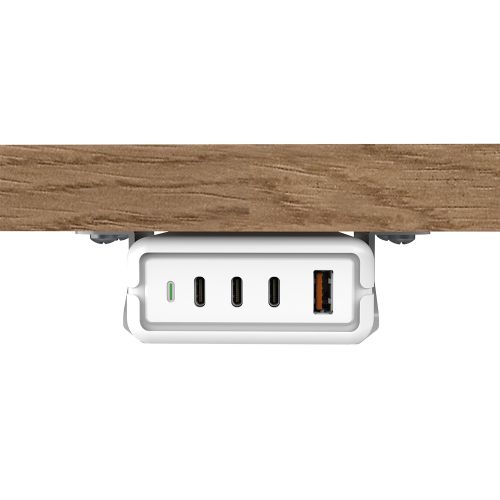

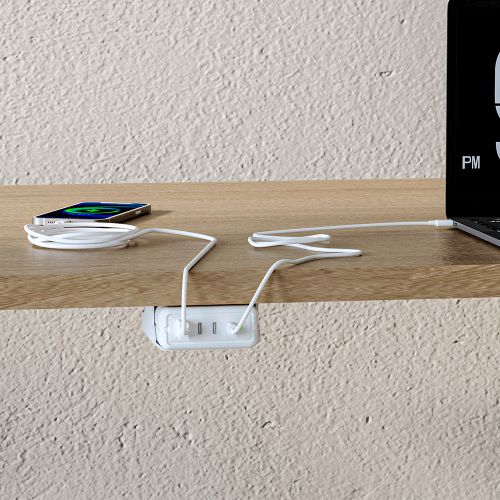

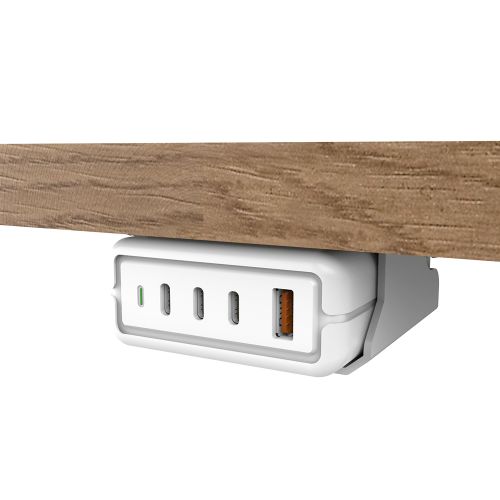

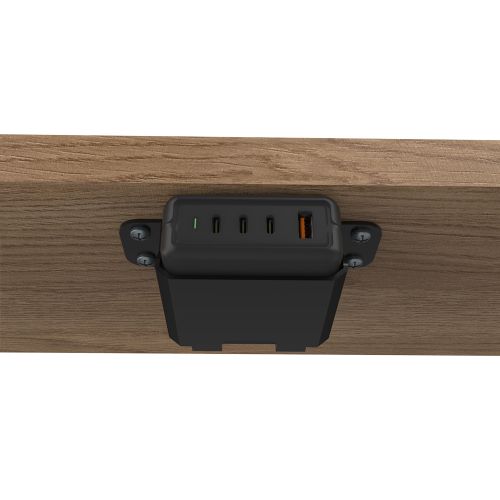

GaN PD 100W Multi-Functional Charging Module, It can support power supply for up to 4 devices simultaneously.
Product Description
Input: 100-240V, 50/60Hz, 2.5A Max
Single-Port Output (Max Power)
USB-C1/C2 (High Power):
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A(140W Max)
USB-C3 Output: 5V/3A, 9V/2.22A, 12V/1.67A
USB-A1/A2 (Standard Ports):
5V/3A, 9V/2A, 12V/1.5A (18W Max)
Multi-Port Output Modes (Dynamic Power Sharing)
USB-C1+C2 Output:65W+65W
USB-C3+A Output:5V/3A
USB-C1+C2+C3 Output: 65W+45W+ 20W
USB-C1+C2+A Output: 65W+45W+18W
USB-C1+C2+C3+A Output: 65W+45W+ 15W
Physical Specifications
Dimensions：90mm × 75mm × 32mm (L × W × H)
Weight: Approximately 239g
Certifications: CB、CE、 KC、 KCC
