OME033

About iPanda

Introducing Smart+ Under-surface — Designed to give you the robust construction you need with an under-surface product, with all of the configurability and intentional design you have come to expect from the Smart series.

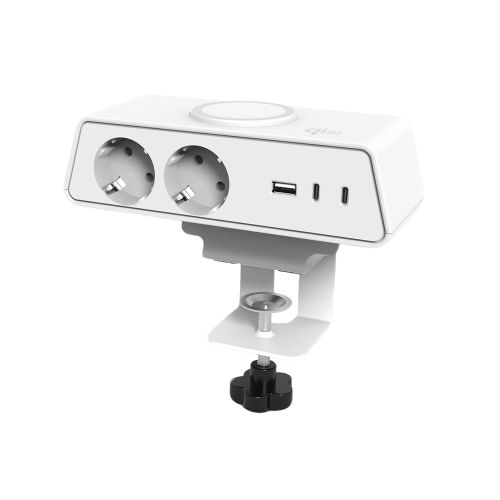

5 IN 1 Desk Power Socket: This desk recessed power strip with 2 AC outlets, 1 USB A charging ports, and 2 USB C Power Delivery port. Every single USB port can intelligently identify your device and seeks to maximize its charging speed.

Material: The housing is made of sufficiently thick flame-retardant ABS material, while the bracket and frame are made of Aluminum, the overall structure is sturdy.

1.8M Extension Lead: AC socket Output: 125VAC, 60Hz, 15A Max omni desktop power extension plug socket matched with 1.8M cable gives you the flexibility to get easy access to distant sockets, which meets most usage scenarios.

Product Description

2xSchuko outlets, 125VAC, 60Hz, 15A Max

1 USB-A charger port 2 USB-C charger ports can charge laptop up to 65 Watts

USB Ports

USB-A: 5V⎓3A, 9V⎓2A, 12V⎓1.5, 18W Max

USB-C1: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A;

PPS (3.3-11V⎓4.05A, 3.3-16V⎓3A, 65W Max);

PD3.0, APPLE2.4A, DCP1.5A, QC2.0/3.0, AFC

USB-C2: 5V⎓3A, 9V⎓2.22A, 12V⎓1.67A, 20W Max

Multi-port Use

USB-C1 + USB-C2:

USB-C1 Max 45W (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓2.67A, 20V⎓2.25A); USB-C2 Max 20W (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A)

USB-C1 + USB-A: USB-C1 Max 45W (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓2.67A, 20V⎓2.25A); USB-A Max 18W (5V⎓3A, 9V⎓2.A, 12V⎓1.5, 18W Max)

USB-C2 + USB-A: Both share 15W

USB-C1 + USB-C2 + USB-A: USB-C1 Max 45W (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓2.67A, 20V⎓2.25A);

USB-C2 & USB-A share 15W

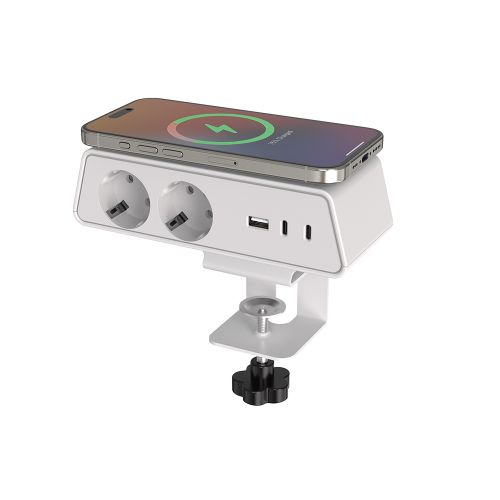

With wireless charging functions of 5W, 7.5W, 10W and 15W

It can automatically identify the highest power output according to the wireless charging protocol of the charged device

Package Information

Inner box: 22x19.5x11cm

Master carton: 108x43x23cm/20pcs

Weight: 27.6kgs

Certification

CE ICE 60884

Installation Tips

Installation is as simple as clamping it to the desk edge and plugging it in. Insert the clip into the desk edge (there is a protective pad to place between the desk and the clip for not to damage your desk). Tighten up the knobs, once you get it super tight, and installation is completed.

Notice

Do not exceed the total rating or it may cause damage to the unit and fire hazard.

This unit is for indoor use only!

Keep your hands dry at the same time. Don’t let the liquid run into the socket.
